Servo Voltage Stabilizers
Servo Voltage Stabilizers

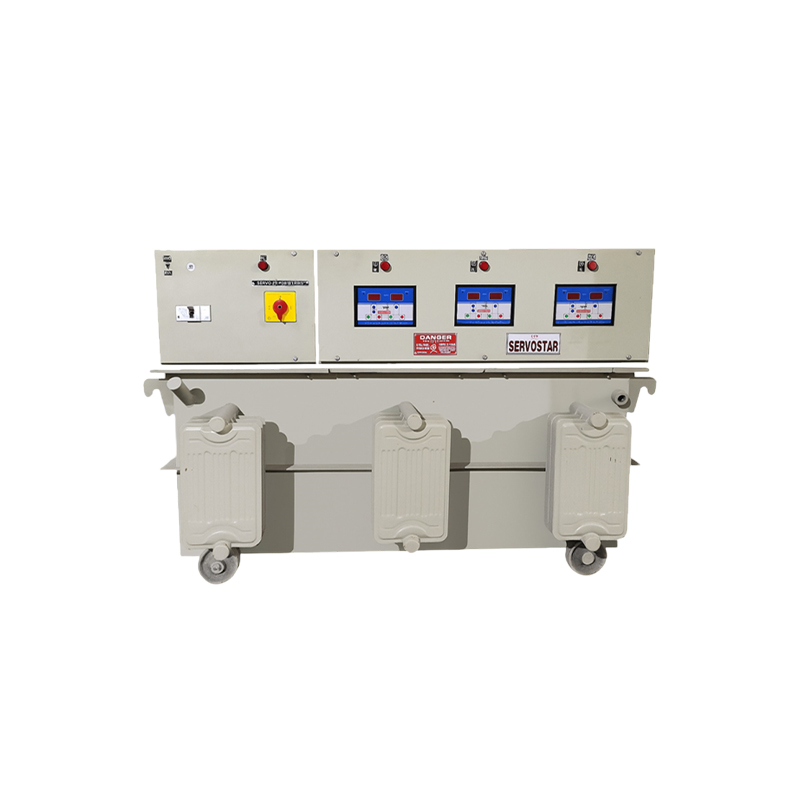

Servo Voltage Stabilizers, At Servostar, you will be provided with the best quality Servo Voltage Stabilizer for best performance protection and highest efficiency. It has been designed to provide you exact voltage stability and isolates your costly equipment from the risks of voltage fluctuations and thus provides you assurance for the uninterrupted working and extended life of the equipment. It has been incorporated with Advanced Servo Technology and fast response for providing you perfect output even in harsh working conditions. It has been designed for providing you reliability, long life, trouble-free working and lowest maintenance requirement, absolute power quality, absolute safety for those industries that require 100% power, best protection, and no compromise on performance.
| Standard Technical Specifications | |
|---|---|
| Rating | 1 KVA to 2000 KVA |
| Input Ranges |
3 Phase: 240-480V, 300-470V, 340-460V 1 Phase: 140-280V, 170-270V, 196-265V Or as per client requirement |
| Input Frequency | 48 to 52 Hz |
| Output Voltage Range |
Three Phase: 400V / 415V ±1% Single Phase: 230V / 240V ±1% |
| Accuracy / Regulation | ±1% |
| Output Frequency | 50 Hz |
| Output Waveform | True to Input |
| Mode of Operation | Auto / Manual |
| Voltage Correction Speed | 6V to 40V (as required) |
| Response Time | Less than 10 ms/sec |
| Correction Method | Step-less correction through Variable Transformer |
| Type of Cooling | ONAN |
| Operating Temperature | 45°C above ambient |
| Insulation Class | Class B to F |
| Duty Cycle | 100% Continuous |
| Efficiency | > 98% |
| Auto Transformer | Copper Electrolytic Grade, Heavy Duty |
| Buck Boost Transformer | Copper Electrolytic Grade, Heavy Duty |
| Servo Motor | High Torque, Quick Response |
| Suitability Type | Suitable for Three Phase Unbalanced / Balanced Supply and Load |
| Control Circuit | Fully automatic IC based solid state, glass epoxy control card |
| Digital Control Card Display |
Digital with Class 1 accuracy Input Voltage Output Voltage Output Current (Auto Scrolling) |
| Auto Protection Alarm |
Under Voltage (Auto Reset) Over Voltage (Auto Reset) Short Circuit & Password Protection |
| Indications |
Mains On Under Volt Over Volt Over Load |
| Load Application | Capacitive, Resistive, or combination |
| Standards |
IS: 9815, IS: 2026, IS: 335 ISO 9001:2008 |
