UPS (Uninterruptible Power Supply)
UPS (Uninterruptible Power Supply)
Description :

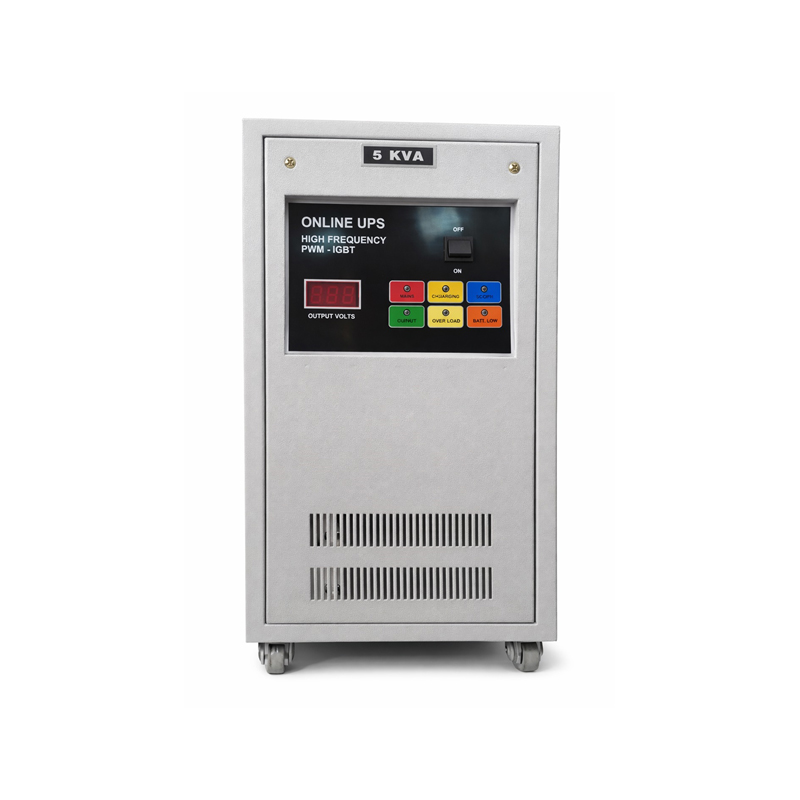

Servostar UPS (Uninterruptible Power Supply) is used for instant power backup in case of power failure. This UPS is used for uninterruptible business operations. It also provides protection to the equipment from any damage caused due to power failure. This UPS is developed using advanced technology. It also offers better performance. These UPS can be used for IT, medical, and industrial purposes. This UPS ensures the availability of pure and clean power at any given time. These UPS are also easy to operate. Servostar UPS is efficient and long-lasting.
| UPS Technical Specifications | |
|---|---|
| Specification / KVA | 1, 2, 3, 4, 5, 8, 10 / 10, 15, 20, 30, 40, 50, 60, 100 |
| Output Wave Form | True Sinusoidal Wave |
| Input Voltage Range |
230V ±15% (1 Phase) 415V ±15% (3 Phase, 4 Wire) |
| Input Frequency Range | 50Hz ±6% |
| Output Voltage |
230V ±1% (Single Phase) 220V / 415V (Three Phase) |
| Output Voltage Regulation | ±1% |
| Output Frequency | 50Hz ±0.5Hz |
| THD | < 3% |
| Inverter Design | IGBT based digital control PWM with instantaneous sine wave control |
| Rectifier cum Battery Charger |
IGBT full wave controlled rectifier with float cum boost charger, including trickle, float, and boost charging facility |
| Charging Modes | Trickle / Float / Boost |
| Crest Factor | > 3:1 |
| Duty Cycle | Continuous |
| Battery Voltage |
144V DC (1–5 KVA) 180V DC (3–10 KVA) Custom options available (e.g., 192V DC) |
| DC Bus Voltage |
360V DC (3 Phase systems) 384V DC (Optional) |
| Overload |
110% for 10 minutes 130% for 30 seconds 130% for 5 seconds |
| Isolation | Output galvanic isolation (Transformer) |
| Short Circuit | Protection by driver electronic sensing (No HRC / fuse used) |
